Lever Chain Hoist

Dongqi Lever Chain Hoist

Lever hoists is kind of lifting hoists used for light material handling. Dongqi lever chain hoists can be grouped into two types: cable or rope lever hoists and chain lever hoists. Both types of liver hoists take advantages of ratchet and pawl system to rotate a gear or pulley a pre-set distance that lifts the loads.

Lever Chain Hoist Offering of Dongqi Hoists:

Dongqi Hoists provides you various types of lever chain hoists, such as, VA series lever chain hoists and VL lever chain hoists and VD type lever chain hoist, etc.

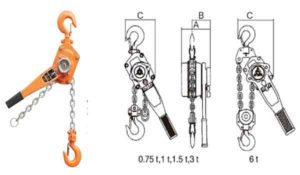

VA Series:

VA series lever chain hoists is kind of widely used lever hoists, which is widely used in various kinds of factories, mines, construction sites, transportation and other occasions, etc., for equipment assembly, material handling and other usage, etc.

Features of VA Series Lever Chain Hoists:

• The lever chain hoists adopts Torntroller Mechanism.
• Quenched and tempered hooks provides high safety to the lever chain hoist.
• Shock-resistant gear cover and brake cover is equipped on the lever chain hoists which can prevent the rain water and dusts.
• Bolted rubber grip is used to ensure the safe operation of the lever chain hoists.
• The brake mechanism of lever chain hoists are designed specially with friction prevention.

Specifications of Lever Chain Hoists:

Standard lift height Running test load( T) No of falls of load chain Load chain diameter(MM) Net weight(kg)
0.5 t lever chain hoist 1.5 0.75 1 5 3.5
0.75 t lever chain hoist 1.5 1.125 1 6 7
1 t lever chain hoist 1.5 1.5 1 6 7.5
1.5 t lever chain hoist 1.5 2.25 1 8 11
2 t lever chain hoist 1.5 3 1 8 12
3 t lever chain hoist 1.5 4.5 1 10 19
6 t lever chain hoist 1.5 9.5 2 10 32

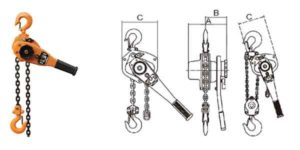

VL Lever Chain Hoists:

Dongqi VL lever chain hoist is a kind of portable and versatile hand-operated loading an pulling appliance, which is widely used in power plants, mines, shipbuilding’s, construction-sites, transports, post and telecommunication for installing equipment, lifting goods and other etc. It has exceptional advantages particularly for handling materials in room limited places.

Vl Lever Chain Hoists Specifications:

Standard lift height Running test load( T) No of falls of load chain Load chain diameter(MM) Net weight(kg)
0.5 t lever chain hoist 1.5 0.75 1 5 3.5
0.75 t lever chain hoist 1.5 1.125 1 6.3 6.6
1.5 t lever chain hoist 1.5 2.25 1 7.1 11
3 t lever chain hoist 1.5 4.5 1 9 17
6 t lever chain hoist 1.5 6 2 9 27.5
8 t lever chain hoist 1.5 13.5 3 9 47

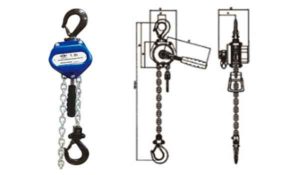

VD Type Lever Chain Hoist:



VD Type Lever Chain Hoists Specifications:

Standard lift height( m) Hand-pull to lift (N) Test load
(kg)
Net Weight (kg) Chain Diameter
250 kg lever chain hoist 1.5 260 375 2.2 4
500 kg lever chain hoist 1.5 260 750 3.2 4
750 kg lever chain hoist 1.5 220 1125 4.7 5
1500 kg lever chain hoist 1.5 240 2250 7.6 7
2500 kg lever chain hoist 1.5 330 3750 14 9
3000 kg lever chain hoist 1.5 360 4500 14 9
5000 kg lever chain hoist 1.5 370 7500 24.5 9
60000 kg lever chain hoist 1.5 370 7500 24.5 9

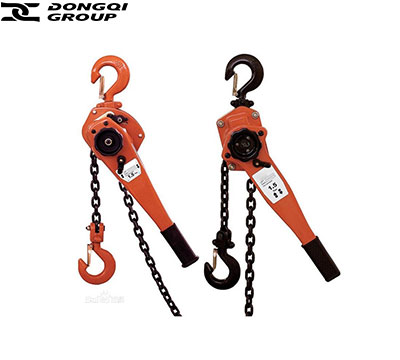

Dongqi Lever Chain Hoist for Sale for Your Reference! Please feel free to contact us issing@cranedq.com.
